Specialized Containers & Calculation Tools

Turning "Unshippable" into Shippable: Custom-engineered ISO tanks for cryogenic, heat-sensitive, high-viscosity, and corrosive liquids.

Custom Engineering

Tailored Tanks for Demanding Liquid Cargoes

Liquids come in myriad chemical formulations, each with unique viscosities, crystallization temperatures, corrosive potentials, and hazard profiles. Selecting the exact container configuration is critical to achieving safe, compliant, and cost-effective transportation.

UCL is uniquely equipped not only to supply standardized general chemical tanks, but to custom-engineer, alter, and commission specialized ISO containers in direct partnership with leading international manufacturers.

Furthermore, backed by strong relationships with major financial institutions, UCL offers customers attractive short-term and long-term lease packages for specialized equipment, mitigating capital expenditure.

Cargoes Requiring Specialized Containers:

  • Acidic & Highly Corrosive Chemicals
  • Flammable Solvents & Hydrocarbons
  • Fresh Milk & Hygiene-Sensitive Dairy
  • Viscous Resins & Polymers
  • High-Vapor-Pressure Volatile Liquids
  • Pressurized Gases & Cryogenics
  • Food-Grade Edible Oils & Juices
  • Dry Bulk Powders & Granules

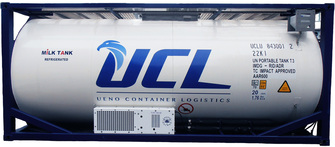

Built-In Refrigeration & Hygienic Design ISO Tank

Built-In Refrigeration & Hygienic Design

Food Grade

Sanitary food-grade build with built-in CIP shower ball cleaning and active refrigeration maintaining ±0.1°C.

Vertical Dual Chocolate E-Heating Tank

Vertical Dual Chocolate E-Heating Tank

Confectionery

Conical bottom sump eliminates residue down to 0–50L (vs ~2,000L standard), with electric heat tracing.

Cryogenic CO2 ISO Tank Container

Cryogenic CO₂ ISO Tank Container

Cryogenic Gas

UN Portable T75 vacuum-jacketed vessel engineered for liquid CO₂ transport at –20°C to –40°C with minimal boil-off.

Jumbo Square ISO Tank Container

Jumbo Square ISO Tank Container

High Volume

Reinforced square body delivers up to 35% higher capacity (32,500L vs 24,000L standard) in the same 20ft footprint.

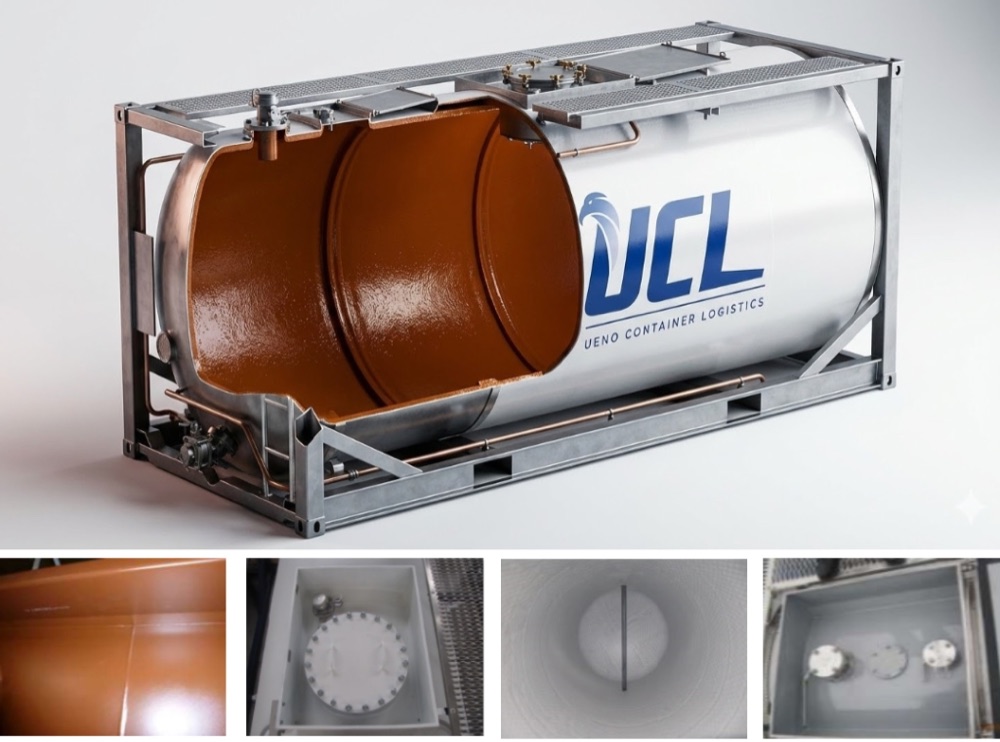

Special-Lined Acid Tank Container

Special-Lined Acid Tank Container

Corrosive Liquid

Specialized PE and FRP protective inner linings prevent corrosion when carrying aggressive chemicals and acids.

Smart Cellular Telematics Tank

Smart Cellular Telematics Tank

GSM Telematics

24/7 autonomous GSM tracking monitoring real-time GPS location, cargo temperatures, levels, and shock alerts.

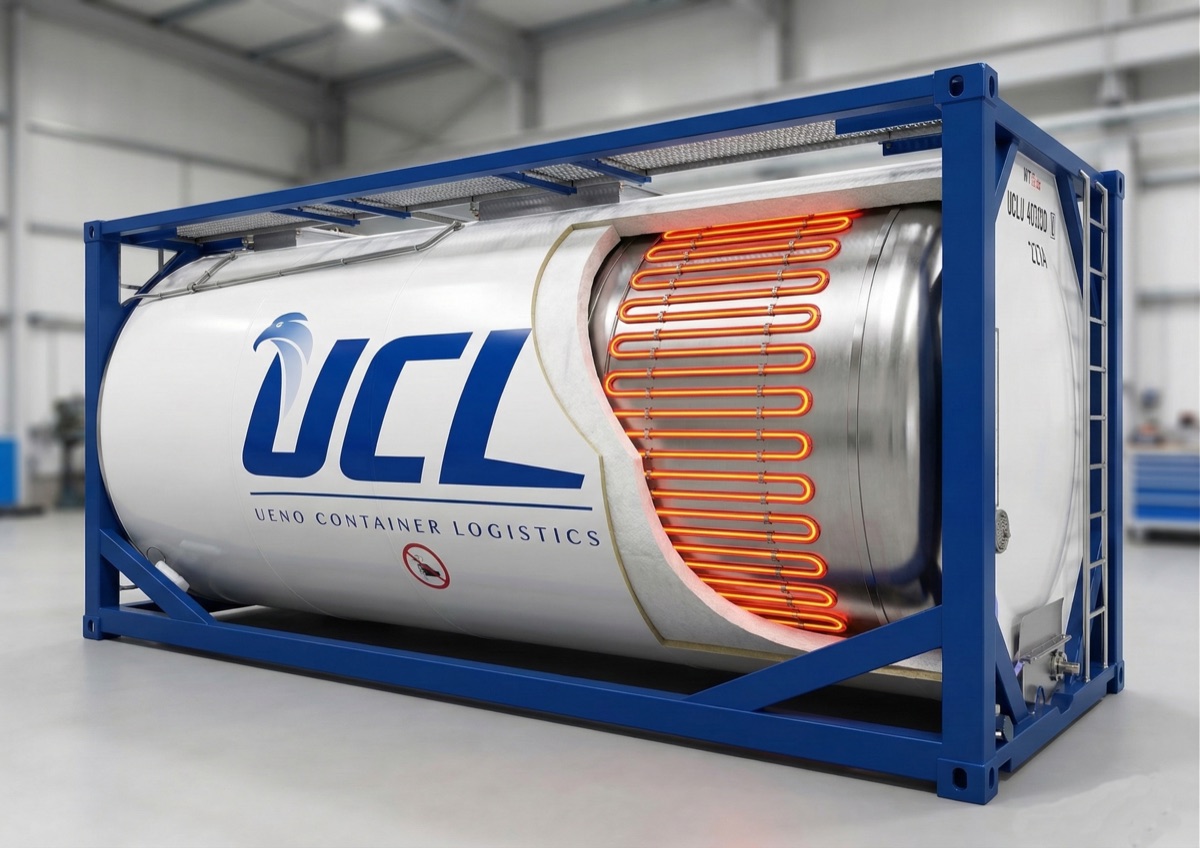

Electric Heat-Traced ISO Tank

Electric Heat-Traced ISO Tank

Dual Heating

Integrated electric heating cables maintain precise cargo temperature with ±2°C accuracy throughout transit.

Interactive Planning Tools

Quick Calculation & Conversion Tools

Accurate, real-time client-side tools to calculate safe ISO tank filling limits, outage percentages, and maritime liquid unit conversions.

ISO Tank Payload & Outage (Ullage) Calculator

Calculate optimum loading volume, total cargo weight, and safety outage percentages compliant with international IMDG / ADR regulations.

Standard 20ft ISO tank shells typically range from 21,000L to 26,000L.
Examples: Solvents (~0.80), Fresh Water (1.00), Edible Oil (~0.92), Caustic Soda (~1.40).
Standard rating: 36,000 kg
Empty tank frame ~3,800 kg
Maximum Safe Loading Volume
25,350 L
Calculated Net Cargo Weight
25.35 MT
25,350 kg
Fill Percentage & Ullage (Outage)
97.5% (Outage: 2.5%)
Compliant: Safe operational fill level achieved.

Bulk Liquid Intermodal Unit Converter

Convert liquid volumes, international maritime measures, and mass across Metric and Imperial standards in real time.

Required when converting between volumetric units and weight (Metric Tonnes).
Litres (L)
26,000
US Gallons (gal)
6,868.4
Imperial Gallons
5,719.2
Cubic Metres (m³)
26.00
Barrels (bbl)
163.5
Metric Tonnes (MT)
26.00 MT
